Digitalization of Engineering Drawings

The client required new digital drawings of some existing machinery.

The equipment was inspected and each component was modeled using 3D scanning technology and parametric 3D modeling software.

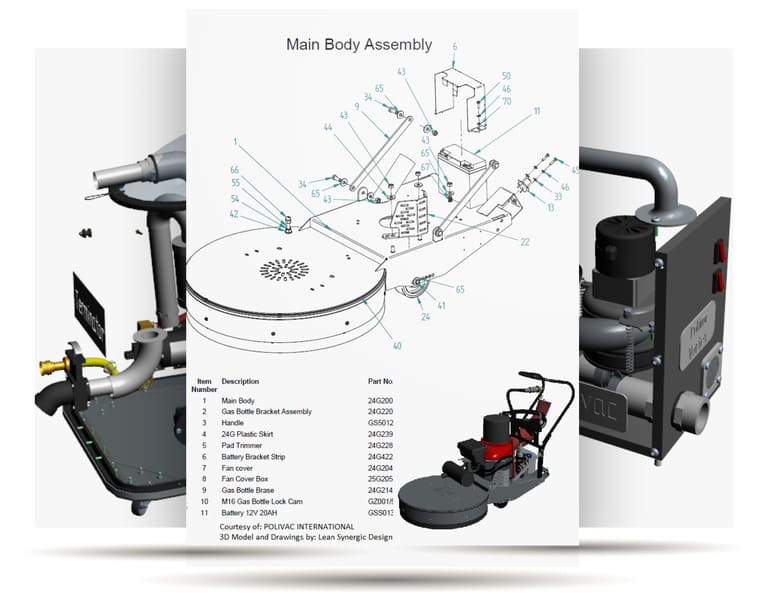

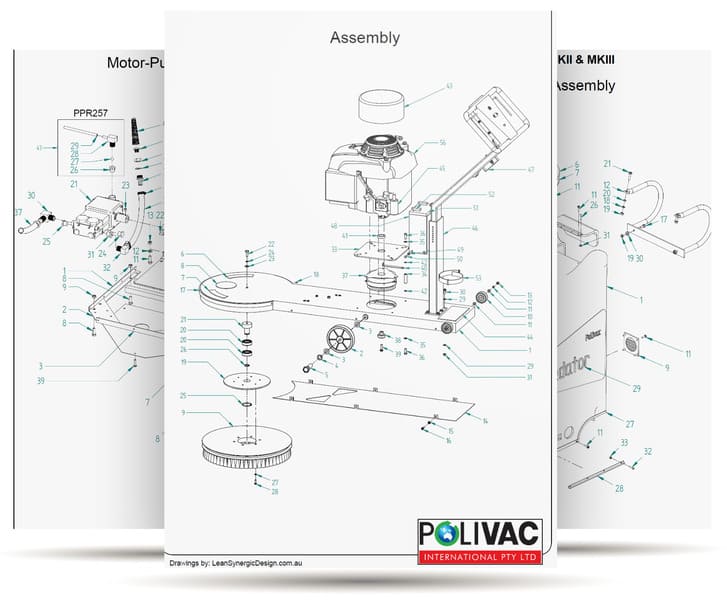

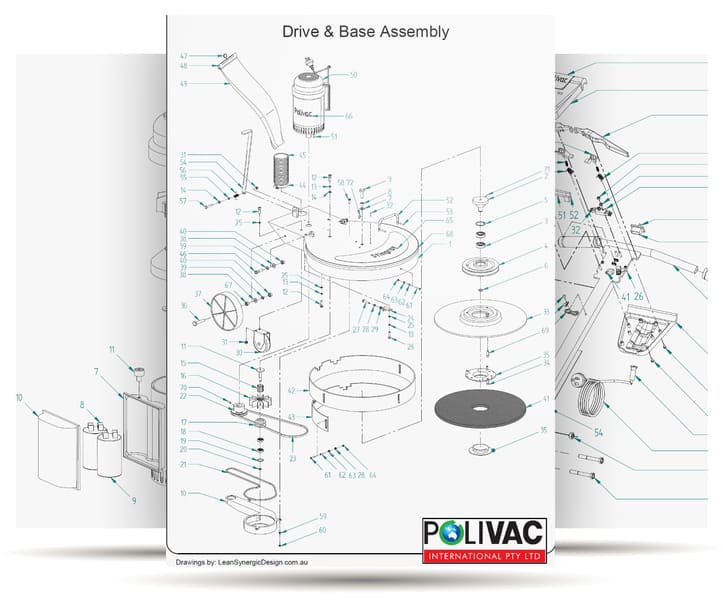

The models of the components were then assembled and 3D exploded views and bills of materials were extracted.

The drawings and part lists are available on the client's website for e-commerce of spare parts.
